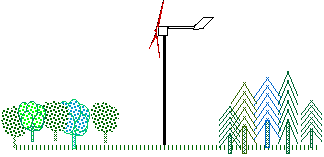

If the terrain is composed of

a large flat surface with low grass

bounded by high woods,

the best place for the Wind Energy Conversion System

is on the grassland. The rotor / hub height must clear thetrees

by at least one-third the hub height.

VIEW ANOTHER WIND REGIME LAYOUT

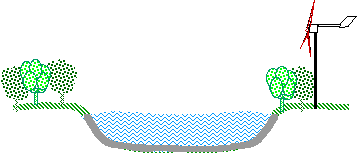

For a flat terrain with a lake or pond

with a shelterbelt composed of

trees of differing heights,

the best place for the Wind Energy Conversion System

is above and slightly downstream of the shelterbelt,

preferrably so that the water is in the upstream directionwith respect to the main wind direction

VIEW ANOTHER WIND REGIME LAYOUT

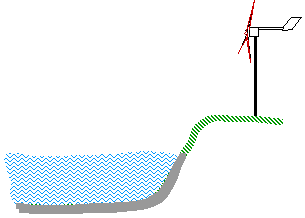

For an inland lake known to experience large waves,

the best place for the Wind Energy Conversion System

is close to the shore, if the prevailing wind direction isfrom the water to the land.
